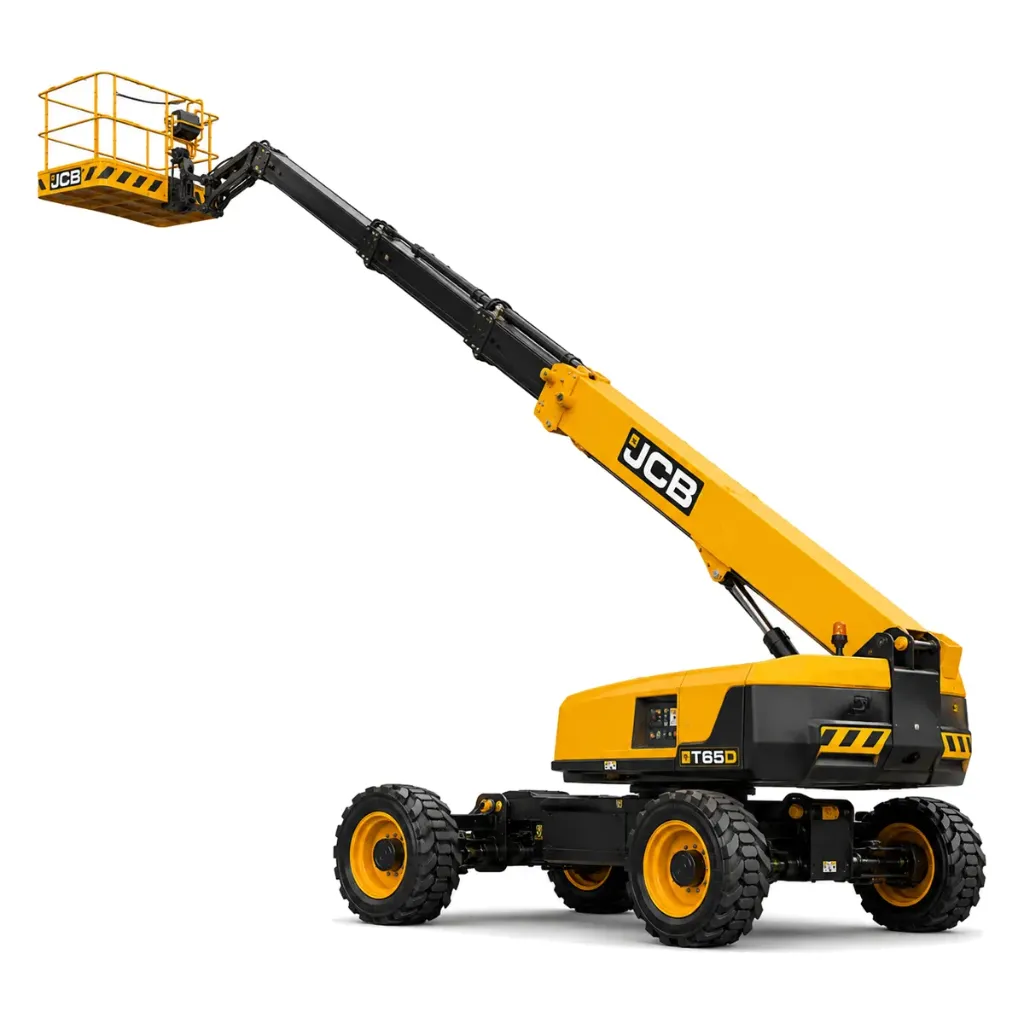

The JCB T65D telescopic boom lift is designed for demanding work at height on construction sites, industrial facilities and outdoor maintenance projects. Its straight telescopic boom provides extended horizontal reach, making it well suited for steel structure installation, building maintenance, facade work and accessing elevated areas where ground-level positioning is limited.
Powered by a diesel engine, the T65D is built for outdoor jobsite conditions where mobility, stability and precise platform positioning are essential. Its four-wheel-drive configuration and rough-terrain capabilities help operators navigate uneven surfaces, while the telescopic boom allows direct access to elevated work areas. The spacious work platform provides room for operators, tools and materials during installation, inspection and maintenance tasks.
Technical specifications:
- Maximum platform height: 65 ft. 4 in.
- Maximum working height: 71 ft. 11 in.
- Maximum horizontal outreach: 56 ft. 6 in.
- Maximum platform capacity: 1,000 lbs. (restricted operating envelope)
- Platform capacity at full outreach: 661 lbs.
- Platform dimensions: 8 ft. x 2 ft. 9 in.
- Engine: JCB EcoMAX 444, Tier 4 Final
- Engine power: 74 HP
- Fuel type: Diesel
- Drive: 4-wheel drive
- Steering: 2-wheel steer
- Turntable rotation: 360°
- Operating weight: Approximately 27,899 lbs.
- Overall width: 7 ft. 10 in.
- Overall height (stowed): 9 ft. 3 in.
- Overall length (stowed): 33 ft. 1 in.
